How to use hermes jms in soapui for IBM MQ

How to use hermes jms in soapui for IBM MQ

I discussed on my previous post about how to configure HermesJMS in SOAP UI for IBM MQ.

Today, I am going to discuss about how we will use JMS Session which we created during configuration of hermes jms for sending/receiving messages to/from Queue from SOAP UI.

Prerequisite

• Destinations/Queues must be created on IBM MQ and Channels are must be started if any.
• SOAP UI must be configure with Hermes JMS.
• JMS session and Destinations/Queues must be defined.

In previous post, we created JMS Session and destinations as below.

Use of Hermes JMS in SOAP UI

HermesJMS is an extensible console that helps Tester to create test cases making it easy to browse or search queues and topics, copy messages around and delete them.

Step 1: Create New SOAP Project using any dummy WSDL. You can use WSDL from SoapUI tutorials.

Once, you will click OK button new SOAP Project will look like below.

Step 2: Create New Test Suite by right click on SOAP UI Project created in Step1.

Step 3: Create New Test Case by right click on Test Suite created in Step2.

Step 4: Create test steps (Type: Test Request) as necessary based on project requirement.

 For example, I will create create three Test Request steps in SOAP UI test case. One Test Request step for Receive Destination Queue to consume message and one Test Request to send request to destination queue and One Test Request step for send and receive messages.

Note: Make sure “Add SOAP Response Assertion” check box to be unchecked, otherwise test suite always fails.

Similarly, create HermesTestStep2  and HermesTestStep3.

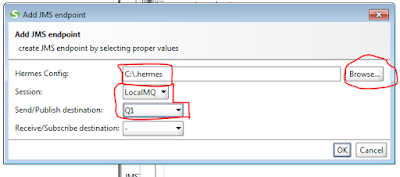

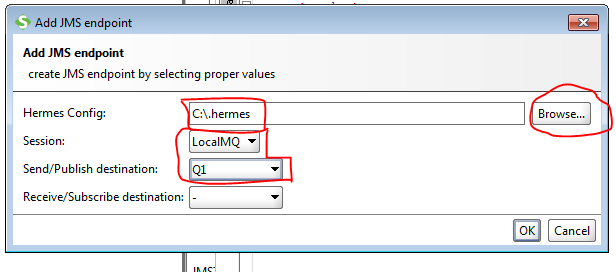

Step 5: Create JMS Endpoints for Receive and send destinations.

Step 6: Map JMS Endpoints for Receive and send destinations.

• send only jms://LocalMQ::queue_Q1
• receive only jms://LocalMQ::-::queue_Q2
• send and receive jms://LocalMQ::queue_Q1::queue_Q2

For Dynamic mock response, you can write Groovy script and also can set JMS header attribute like ReplyTo, Expiration time, time-out etc.

Related Topic:

How to configure HermesJMS in SOAP UI for IBM MQ

How to install HermesJMS with SoapUI

Spring jms code with ibm websphere mq example

How to use RFHUTILC.EXE to connect to a remote queue manager

How to achieve IBM MQ with high availability configuration

How to configure HermesJMS in SOAP UI for IBM MQ

How to configure HermesJMS in SOAP UI for IBM MQ

How to install HermesJMS in Soap UI, please visit my previous post.

HermesJMS is a handy open source project hosted by Sourceforge,that can be used to monitor, inspect, and interact with JMS Queues, Topics, and Messages.

HermesJMS is an extensible console that helps you interact with JMS providers making it easy to browse or search queues and topics, copy messages around and delete them. It fully integrates with JNDI letting you discover administered objects stored, create JMS sessions from the connection factories and use any destinations found. Many providers include a plugin that uses the native API to do non-JMS things like getting queue depths (and other statistics) or finding queue and topic names.

It works with many of the popular JMS providers such as Active MQ, Arjuna MQ, Tibco EMS, Fiorano MQ, JBoss MQ, JORAM, OpenJMS, Oracle, Pramati, SAP, SeeBeyond ICAN, SeeBeyond JCAPS, Sonic MQ, WebLogic JMS, WebMethods, and WebSphere MQ.

Configure HermesJMS

Prerequisites
Before configuration, make sure the following has been done:

IBM MQ is installed and started.
HermesJMS is installed with SOAP UI.
HermesJMS has been added to Preferences as per below.

Launch HermesJms: Start HermesJMS from the Project menu:
     Select Project > Start HermesJMS
The HermesJMS Manager opens.

Create Session: To access a provider you need to configure a session. This should include a connection factory for your provider and the needed connection details. Click on New session and Enter a name for the session: LocalMQ and then click apply and OK.

  The session is now accessible in the HermesJMS manager:

Add Provider: Start with a created Session, click on Edit and Choose the Providers tab first at the bottom.

Select Classpath Groups (it may be the only one available).Right-click in the Classpath Groups area,Select Add Group and Enter the name : MQ

Add these all jar files in Library section.If the scan window opens, click Scan. Click Apply and OK.

The new (or modified) session is available in the HermesJMS manager:In order to have configuration loaded, HermesJMS must be restarted.

Add Connection Factory: A connection factory is an object used to create connections to the provider. Click Apply and OK.

The modified session is now accessible in the HermesJMS manager:

Add Properties:

In order for HermesJMS to handle the connections, you need to add plugin and properties properties containing addresses to use for the broker and service.Right-click in the Plugin Property area. Click apply and OK.

Enter Queue or Topic. Enter all queues, topic of Local_Queue queue manager. Click apply and OK.

In order to have configuration loaded, HermesJMS must be restarted.The created session in HermesJMS named LocalMQ, containing four queues which we can use from within SoapUI.

How we can use created session from within SoapUI, I will post on my later post.
